Orthogonal Matching Pursuit (OMP)

OMP is coppafisher's current best gene assignment algorithm. OMP runs independently, except requiring register for image-alignment and call spots for dataset-accurate representation of each gene's unique barcode: its bled code, \(\mathbf{B}\).

A pixel score image is produced for every pixel and every gene by iterating through steps 2-4. Then, the final gene reads are found in step 5.

Definitions

\(r\) and \(c\) represents sequencing rounds and channels respectively.
\(B_{grc}\) represents gene g's bled code in round \(r\), channel \(c\) saved at nb.call_spots.bled_codes from call spots.
\(S_{prc}\) is pixel \(p\)'s colour in round \(r\), channel \(c\), after pre-processing is applied.
\(c_{pgi}\) is the OMP pixel score given to gene \(g\) at pixel \(p\) on the \(i\)'th OMP iteration.
\(w_{pgi}\) is the OMP gene weight given to gene \(g\) for image pixel \(p\) on the \(i\)'th iteration. This is computed by least squares in step 3. \(i\) takes values \(1, 2, 3, ...\)
\(||A||_{...}\) represents an L2 norm of \(A\) (or Frobenius norm for a matrix) over all indices replaced by a dot (\(.\)).

0: Pre-processing

All pixel colours are gathered using the results from register. Any out of bounds round/channel colour intensities are set to zero. The pixel colours, \(\mathbf{S}\), are multiplied by nb.call_spots.colour_norm_factor for the each tile.

1: Minimum Intensity Threshold

Before running on pixels, many pixels are discarded because they are background and not spots. To do this, we take the middle z plane colours for each tile, \(D_{txyrc}\), and compute their intensities as

\[ I_{txy} = \min_r(\max_c(|D_{txyrc}|)) \]

The intensity thresholds for each tile are then

\[ \text{minimum\_intensity}_t = a\times\text{nth percentile}_{xy}(I_{txy}) \]

\(n\) is the minimum_intensity_percentile (typically 5) and \(a\) is the minimum_intensity_multiplier (typically 4).

2: Next Gene Assignment

A pixel can have more than one gene assigned to it. The most genes allowed on each pixel is max_genes (typically 5). Let's say we are on iteration \(i\) (\(i = 1, 2, 3, ...\)) for pixel \(p\). The pixel will already have \(i - 1\) genes assigned to it and their weights have been computed \((w_{pg(i - 1)})\). We compute the latest residual pixel colour \(R_{prci}\) as

\[ R_{prci} = S_{prc} - \sum_g(w_{pg(i - 1)}B_{grc}) \]

For the first iteration, \(R_{prc(i=1)} = S_{prc}\). Using this residual, a "semi dot product score" is computed for every gene and background gene \(g\) similar to call spots

\[ \text{(gene scores)}_{pgi} = \frac{1}{N_r}\Bigg|\sum_r\Bigg(\frac{1}{||\mathbf{\hat{R}}||_{pr.(i-1)}||\mathbf{B}||_{gr.}}\sum_{c}(\hat{R}_{prc(i - 1)}B_{grc})\Bigg)\Bigg| \]

where

\[ \hat{R}_{prci} = \epsilon_{prci}^2R_{prci}\text{,}\space\space\space \epsilon_{prci}^2 = N_r N_c\frac{\sigma_{pirc}^{-2}}{\sum_{rc}\sigma_{pirc}^{-2}} \]

and

\[ \sigma_{pirc}^2 = \beta^2 + \alpha\sum_{g\text{ assigned}} w_{pg(i-1)}^2 B_{grc}^2\text{,}\space\space\space N_r = \sum_r 1\text{,}\space\space\space N_c = \sum_c 1 \]

\(\alpha\) is given by alpha (typically 120) and boosts the uncertainty on round-channel pairs already strongly weighted. \(\beta\) is given by beta (typically 1) and gives every round-channel pair a constant uncertainty.

Why do we need an uncertainty weighting (\(\mathbf{\epsilon}^2\)) for each round-channel pair?

On real datasets, subtracting the assigned, weighted bled code is not perfect for every round (shown below). Therefore, \(\mathbf{\epsilon}\) is a way of estimating the uncertainty associated with the imperfect gene weights. It places a bias towards genes that are bright in unique round-channel pairs when \(\alpha>0\).

By default, \(\alpha >> \beta\) so it is unlikely to assign two genes bright in the same round-channel pairs.

If you fully trust the weightings to be accurate, set alpha to zero in the config.

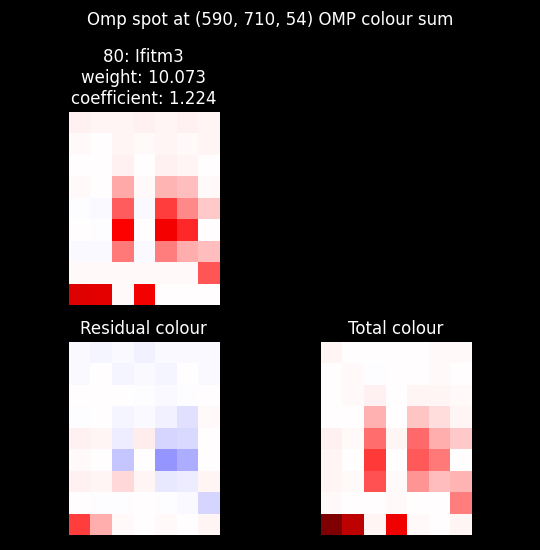

Image title — An example of OMP failing to find a scalar to correctly weight every bright round-channel pair for a gene. It is failing because the residual colour is sometimes very positive and sometimes very negative. Only the fourth round was almost perfectly subtracted.

Gene \(\tilde{g}\) is successfully assigned to pixel \(p\) when all conditions are met:

\((\text{gene scores})_{p\tilde{g}i}\) is the largest scoring gene.
\((\text{gene scores})_{p\tilde{g}i} >\) dot_product_threshold (typically 0.72).
\(\tilde g\) is not already assigned to the pixel.
\(\tilde g\) is not a background gene.
The residual intensity \(\min_r(\max_c(|\hat{R}_{prci}|)) > \text{minimum\_intensity}_t\). See diagnostic.
Iteration \(i \leq\) max_genes.

The reasons for each of these conditions is to:

pick the best gene
remove unconfident gene reads
not double assign genes
avoid over-fitting on high-background pixel colour
remove dim colours (background noise)
avoid assigning too many genes

respectively. If a pixel fails to meet one or more of these conditions, then no more genes are assigned to it and the pixel scores will be final.

If pixel \(p\) meets all conditions, then gene \(\tilde g\) is taken as the next gene assigned.

If all remaining pixels fail the conditions, then the iterations stop and the current pixel scores \(\mathbf{c}\) are kept as final for step 5.

3: Gene Weights

On each iteration, the gene weights are re-computed for all genes assigned to pixel \(p\) to best represent the pixel's colour. All unassigned genes have a zero weight, so \(g\) here represents only the assigned genes (\(i\) assigned genes) for pixels that passed step 2. The weights, \(w_{pgi}\), are computed through the method of least squares by minimising the scalar residual

\[ \sum_{rc}(S_{prc} - \sum_{g\text{ assigned}}(B_{grc}w_{pgi}))^2 \]

In other words, using matrix multiplication, the weight vector of length genes assigned is

\[ \mathbf{w} = \bar{\mathbf{B}}^{-1} \bar{\mathbf{S}} \]

where \(\bar{(...)}\) represents flattening the round and channel dimensions into a single dimension, so \(\bar{\mathbf{B}}\) is of shape \(\text{genes assigned}\) by \(\text{rounds}*\text{channels}\) and \(\bar{\mathbf{S}}\) is of shape \(\text{rounds} * \text{channels}\). \((...)^{-1}\) is the Moore-Penrose matrix inverse (a pseudo-inverse).

4: Pixel Scores

After updating the gene weights, every assigned gene pixel score is (re)computed for pixels that passed gene assignment. The pixel score for assigned gene \(g\) in pixel \(p\) is given by

\[ c_{pgi} = \frac{1}{N_r ||\mathbf{\tilde{R}}||_{pgr.i}}\Bigg | \sum_{rc}\tilde{R}_{pgrci} \hat{B}_{grc} \Bigg | \]

where

\[ \tilde{R}_{pgrci} = \epsilon_{prci}^2\Bigg( S_{prc} - \sum_{g'\text{; }g' \neq g}B_{g'rc}w_{pg'i}\Bigg) \]

and

\[ \epsilon_{pgrci}^2 = N_r N_c \frac{\sigma_{pgirc}^{-2}}{\sum_{rc} \sigma_{pgirc}^{-2}} \text{,}\space\space\space \sigma_{pgirc}^2 = \beta^2 + \alpha \sum_{g'\text{; }g' \neq g}w_{pg'i}^2 B_{g'rc}^2 \]

A pixel score is made negative if the gene's weight is negative.

Step 2 is now repeated on the remaining pixels.

Why not use the scores from step 2 as the pixel scores?

If you recall, from step 2, the assigned gene is given a preliminary score similar to step 4's pixel score. This score is not used as the final OMP pixel scores (but, we did try). This is because the pleminary score has lowered the scores because they overlap with other genes. In other words, the scores are lowered by brightness in other rounds-channel pairs.

The step 4 scoring method gets around this. Assuming that all gene assignments are perfect, by subtracting those assignments off except gene g, then gene g is given a fairer chance of scoring highly, hopefully without the brightness of other genes.

5: Spot Scoring and Spot Detection

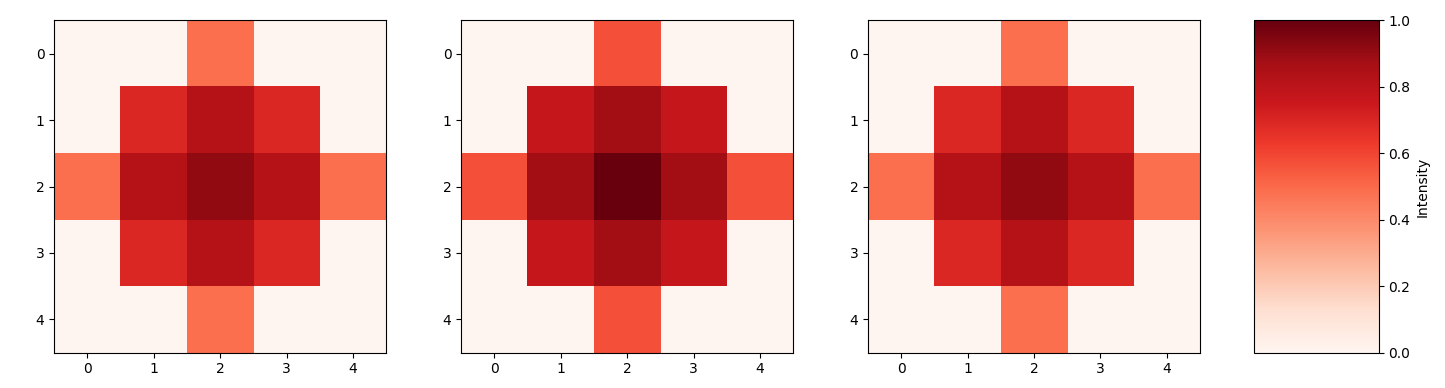

The gene pixel score images are converted to gene score images by convolving with the mean spot given as a numpy .npy file at file path omp_mean_spot in the file_names config section. If omp_mean_spot is not given, the default mean spot is used (shown below). The mean spot is divided by its sum then used. This gives a score for every pixel for every gene. Spot-shaped and high pixel score regions result in higher score maxima. Scores can be \(\geq 0\). But, in practice, scores are rarely greater than \(1\).

Using the score images, each gene's spots are detected using the find spots algorithm to find score local maxima using config parameters radius_xy (typically 3) and radius_z (typically 2) respectively with a score threshold set by score_threshold (typically 0.1). These are the final OMP gene reads shown in the Viewer.

Why not score each spot using a single pixel score value?

Pixel scores can be inflated by single overly-bright round/channel anomalies since they are computed using a non-robust least squares calculation. This could be from real autofluorescence or from mistakes in registration. For this reason, a spot's score is better represented by using pixel score data from its neighbourhood. The mean spot is an estimation of how much care to put in the local, spatial neighbourhood.

If you still wanted to score each spot by a single pixel score value, create your own 1x1x1 mean spot with value \(>0\) and run OMP again.

Diagnostics

Intensity

It is recommended to view the pixel intensities on a histogram first by typing

from coppafisher import Notebook
from coppafisher.plot import intensity

nb = Notebook("/path/to/notebook")
intensity.view_intensity_histogram(nb)

On this plot, you can see vertical lines to indicate important intensity values.

Use the diagnostic to see intensity images. Once OMP is complete, you can view the minimum intensity computed for each tile by doing

from coppafisher import Notebook

nb = Notebook("/path/to/notebook")
print(nb.omp.results[f"tile_{tile}"].attrs["minimum_intensity"])

where tile is the tile index.

Viewer

Use the Viewer to check the final gene reads made by OMP.

PDF

Check the _omp.pdf file created at runtime in the output directory for details on the OMP mean spot, the spot score distributions, gene counts, and gene locations.
